ZOOMLION Concrete Pumps and Placing Booms, Supplied in Canada.
Truck-mounted concrete pumps and placing booms, new or used, lease or purchase. We supply the ZOOMLION line in Canada and specify it against the pour rather than the catalogue.
What we supply
Concrete Where the Truck Cannot Go.
A pump is chosen on reach — how high, how far out, and how much you have to place an hour. Tell us the pour and we will tell you which machine covers it, and whether the placing boom is the better answer on a tall build.
7 Machines5 truck-mounted concrete pumps and 2 placing booms, as ZOOMLION list them for North America
121 ft to 184 ftReach height, from 121 ft 9 in on the 38X-5RZ to 183 ft 9 in on the 56X-6RZ
Up to 235 yd³/hMaximum theoretical output, on the 56X-6RZ
The range
Two Families, Seven Machines.
ZOOMLION list the North American concrete line in 2 families. Each one below is their own name for it.
Truck-Mounted Concrete Pumps
5 machines, from the 38X-5RZ reaching 121 ft 9 in up to the 56X-6RZ reaching 183 ft 9 in. Every one is an RZ-fold boom on a DN 125 delivery line.
See the Truck-Mounted Concrete Pumps
Placing Booms
2 machines. ZOOMLION give both an independent height of 24 m and a boom turning angle of 365°.
See the Placing BoomsThe range — one of two
Truck-Mounted Concrete Pumps.
5 machines, from the 38X-5RZ reaching 121 ft 9 in up to the 56X-6RZ reaching 183 ft 9 in. Every one is an RZ-fold boom on a DN 125 delivery line.
ZOOMLION’s own name for this family is “Truck Mounted Pumps”.
5-section RZ-fold boom. Reach depth 106 ft 11 in. Unfolding height 31 ft 10 in. ZOOMLION give it maximum pressure 1,276 psi, a 5 in delivery line, Ø10 in cylinders on a 6 ft 11 in stroke.
Spec Sheet (PDF) · 541 KB
6-section RZ-fold boom. Reach depth 115 ft 10 in. Unfolding height 45 ft 3 in. ZOOMLION give it maximum pressure 1,276 psi, a 5 in delivery line, Ø10 in cylinders on a 6 ft 11 in stroke.
Spec Sheet (PDF) · 1.1 MB
6-section RZ-fold boom. Reach depth 131 ft 11 in. Unfolding height 51 ft 10 in. ZOOMLION give it maximum pressure 1,638 psi, a 5 in delivery line, Ø10 in cylinders on a 6 ft 11 in stroke.
Spec Sheet (PDF) · 482 KB
5-section RZ-fold boom. Reach depth 89 ft 3 in. Unfolding height 26 ft 7 in. ZOOMLION give it maximum pressure 1,276 psi, a 5 in delivery line, Ø10 in cylinders on a 6 ft 11 in stroke.
Spec Sheet (PDF) · 675 KB
5-section RZ-fold boom. Reach depth 82 ft 8 in. Unfolding height 24 ft 7 in. ZOOMLION give it maximum pressure 1,276 psi, a 5 in delivery line, Ø10 in cylinders on a 6 ft 11 in stroke.
Spec Sheet (PDF) · 1.2 MBThe range — two of two
Placing Booms.
2 machines. ZOOMLION give both an independent height of 24 m and a boom turning angle of 365°.
ZOOMLION’s catalogue gives this model an independent height of 24 m and a boom turning angle of 365°. Their sheet for it is a set of drawings without a specification table.
Spec Sheet (PDF) · 934 KB
ZOOMLION’s catalogue gives this model an independent height of 24 m and a boom turning angle of 365°. Their sheet for it is a set of drawings without a specification table.
Spec Sheet (PDF) · 937 KBThe source
ZOOMLION Documents.
The manufacturer's own spec sheets, as published. Every figure on this page comes from these sheets or from ZOOMLION's North American catalogue.

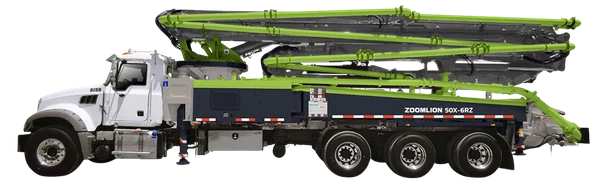

PDF · 541 KB 50X-6RZ Spec Sheet Boom and pump specification, reach diagram, dimensions and support footprint.

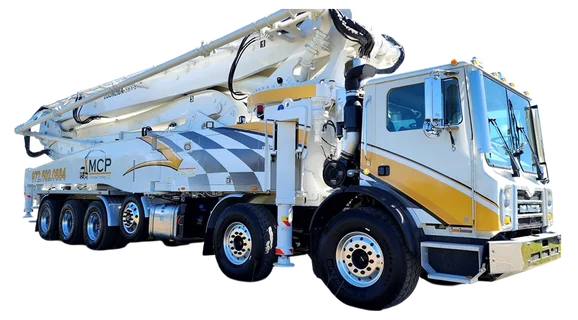

PDF · 1.1 MB 56X-6RZ Spec Sheet Boom and pump specification, reach diagram, dimensions and support footprint.

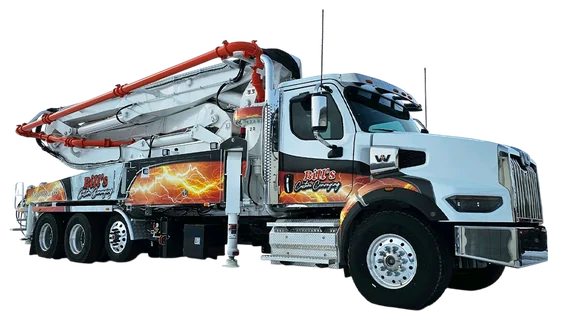

PDF · 482 KB 40X-5RZ Spec Sheet Boom and pump specification, reach diagram, dimensions and support footprint.

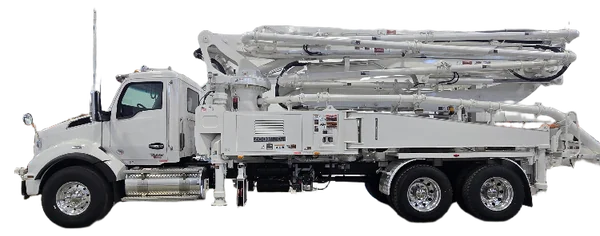

PDF · 675 KB 38X-5RZ Spec Sheet Boom and pump specification, reach diagram, dimensions and support footprint.

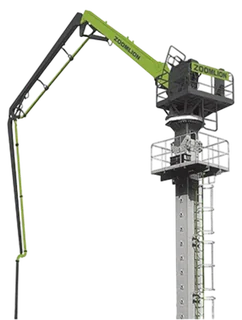

PDF · 1.2 MB HGC36A-4Z Spec Sheet ZOOMLION’s drawing sheet for the machine.

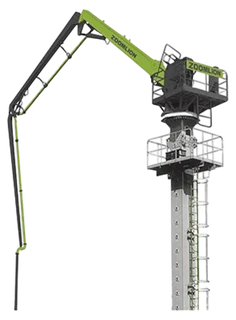

PDF · 934 KB HGC33A-4Z Spec Sheet ZOOMLION’s drawing sheet for the machine.
PDF · 937 KB
Every figure on this page is published by ZOOMLION, either in their North American catalogue or in the spec sheets above. ZOOMLION note on their own sheets that dimensions and weights depend on the truck, the pump model and the equipment, so we confirm the specification against your pour before quoting.
Before you spend the money
Straight Answers.
If yours is not here, call. You will speak to someone who knows the machines.
Do you supply ZOOMLION machines other than tower cranes?
Yes. Our Canadian distributorship is for the ZOOMLION tower crane range, and we supply the rest of the ZOOMLION line as well — concrete equipment, mobile and crawler cranes, aerial work platforms, earthmoving and forklifts. It is the same conversation and the same phone number.
Where do the figures on this page come from?
ZOOMLION. Every figure is taken from their North American catalogue or from their own spec sheets, and those sheets are on this page for you to download. Where two ZOOMLION documents give different figures for the same machine, we confirm it with them before quoting rather than choosing one.
Does the truck come with it?

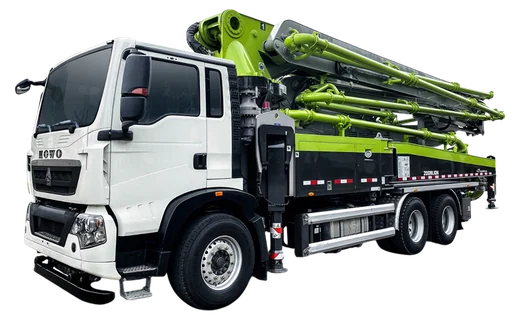

ZOOMLION print the pump’s dimensions against an example chassis on each sheet — a Freightliner 114SD on the 38X-5RZ, 40X-5RZ and 56X-6RZ, a MACK on the 47X-5RZ and 50X-6RZ — and note that dimensions and weights depend on the truck, the pump model and the equipment. Tell us what you are mounting it on and we will confirm it with ZOOMLION before quoting.
What does the model number mean?
On the truck-mounted pumps the first number is the boom, and the second is the number of sections: ZOOMLION give the 56X-6RZ a six-section RZ-fold boom reaching 183 ft 9 in, and the 38X-5RZ a five-section RZ-fold boom reaching 121 ft 9 in.
Do you sell these, or rent them?
Both. New or used, lease or purchase. Tell us the job and we will tell you which makes more sense for you — sometimes that answer is to rent.
