ZOOMLION Aerial Work Platforms, Supplied in Canada.
Scissor lifts, articulating boom lifts and telescopic boom lifts — ZOOMLION’s MEWP line, new or used, lease or purchase. We supply it in Canada and specify it against the job rather than the catalogue.
What we supply
Getting People to the Work, Safely.
A platform is chosen on 3 numbers: how high, how far out, and what fits through the gap. Tell us those and we will tell you which machine covers the job — and whether renting is the better answer.
12 Machines6 scissor lifts, 3 articulating boom lifts and 3 telescopic boom lifts, as ZOOMLION list them for North America
21 ft to 94 ftWorking height, from 21 ft 4 in on the ZS1530DC micro scissor lift to 94 ft 1 in on the ZT88J telescopic boom lift
ANSI/CSAZOOMLION print “Comply with ANSI/CSA Standard” on the sheets for these machines
The range
Three Families, Twelve Machines.
ZOOMLION list the North American MEWP line in 3 families. Each one below is their own name for it.
Scissor Lifts
6 machines, from the ZS1530DC micro scissor lift at 21 ft 4 in working height up to the ZS4555AC at 51 ft 6 in.
See the Scissor Lifts
Articulating Boom Lifts
3 machines. ZOOMLION publish an up-and-over height for each one, which is the figure that matters when you have to clear an obstruction to reach the work.
See the Articulating Boom Lifts
Telescopic Boom Lifts
3 machines, from the ZT48J at 54 ft 6 in working height up to the ZT88J at 94 ft 1 in.
See the Telescopic Boom LiftsThe range — one of three

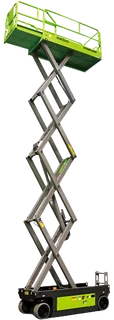

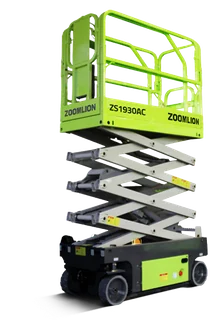

Scissor Lifts.

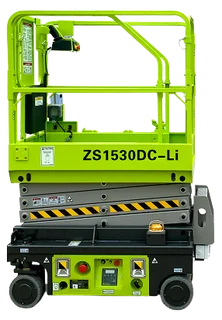

6 machines, from the ZS1530DC micro scissor lift at 21 ft 4 in working height up to the ZS4555AC at 51 ft 6 in.
Platform capacity 530 lb. Platform 4 ft 3 in by 2 ft 4 in. Stowed 4 ft 9 in long, 2 ft 6 in wide, 6 ft 9 in high. Drive speed 2.5 mph, gradeability 30% (17°). Battery 2×12 V/85 Ah. Weight 1,975 lb. ZOOMLION print “Comply with ANSI/CSA Standard” on the sheet.
Spec Sheet (PDF) · 629 KB
Platform capacity 510 lb. Platform 5 ft 5 in by 2 ft 5 in. Stowed 6 ft 1 in long, 2 ft 6 in wide, 7 ft 3 in high. Drive speed 2.5 mph, gradeability 25% (14°). Battery 4×6 V/210 Ah. Weight 3,210 lb. ZOOMLION print “Comply with ANSI/CSA Standard” on the sheet.
Spec Sheet (PDF) · 680 KB
Platform capacity 510 lb. Platform 7 ft 7 in by 2 ft 8 in. Stowed 8 ft 2 in long, 2 ft 8 in wide, 7 ft 11 in high. Drive speed 2.5 mph, gradeability 25% (14°). Battery 4×6 V/225 Ah. Weight 4,610 lb. ZOOMLION print “Comply with ANSI/CSA Standard” on the sheet.
Spec Sheet (PDF) · 680 KB

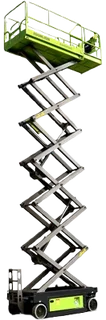

Platform capacity 770 lb. Platform 7 ft 7 in by 3 ft 8 in. Stowed 8 ft 2 in long, 3 ft 9 in wide, 8 ft 4 in high. Drive speed 2.5 mph, gradeability 25% (14°). Battery 4×6 V/240 Ah. Weight 6,460 lb. ZOOMLION print “Comply with ANSI/CSA Standard” on the sheet.
Spec Sheet (PDF) · 680 KB
Platform capacity 770 lb. Platform 7 ft 7 in by 3 ft 8 in. Stowed 8 ft 2 in long, 3 ft 9 in wide, 8 ft 9 in high. Drive speed 2.5 mph, gradeability 25% (14°). Battery 4×12 V/300 Ah. Weight 7,075 lb. ZOOMLION print “Comply with ANSI/CSA Standard” on the sheet.
Spec Sheet (PDF) · 680 KB
Platform capacity 570 lb. Platform 8 ft 9 in by 3 ft 8 in. Stowed 9 ft 5 in long, 4 ft 7 in wide, 8 ft 10 in high. Drive speed 2.5 mph, gradeability 25% (14°). Battery 4×12 V/300 Ah. Weight 7,562 lb. ZOOMLION print “Comply with ANSI/CSA Standard” on the sheet.
Spec Sheet (PDF) · 680 KBThe range — two of three

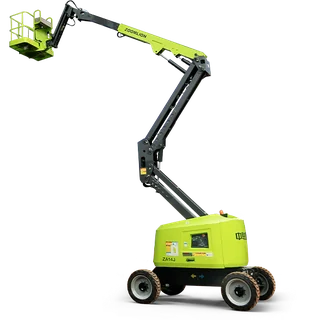

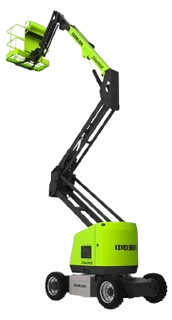

Articulating Boom Lifts.
3 machines. ZOOMLION publish an up-and-over height for each one, which is the figure that matters when you have to clear an obstruction to reach the work.
Up and over height 24 ft 9 in. Platform capacity 660 lb. Platform 6 ft by 2 ft 6 in. Stowed 21 ft 7 in long, 7 ft 7 in wide, 7 ft 5 in high. Drive speed 4.23 mph, gradeability 45% (24°). Kubota V2403, 49 hp/2600 rpm. Weight 15,653 lb. ZOOMLION print “Comply with ANSI/CSA Standard” on the sheet.
Spec Sheet (PDF) · 933 KB
Up and over height 27 ft 1 in. Platform capacity 550 lb. Platform 8.1 ft by 3 ft. Stowed 28 ft 7 in long, 8 ft 1 in wide, 8 ft 3 in high. Drive speed 3.79 mph, gradeability 45% (24°). Battery 24×2 V/440 Ah. Weight 20,283 lb. ZOOMLION print “Comply with ANSI/CSA Standard” on the sheet.
Spec Sheet (PDF) · 1.3 MB
Up and over height 25 ft 5 in. Platform capacity 510 lb. Platform 4 ft 12 in by 2 ft 6 in. Stowed 21 ft 4 in long, 5 ft 9 in wide, 6 ft 7 in high. Drive speed 4 mph, gradeability 30% (17°). Battery 2×24 V/320 Ah. Weight 14,770 lb.
Spec Sheet (PDF) · 638 KBThe range — three of three
Telescopic Boom Lifts.

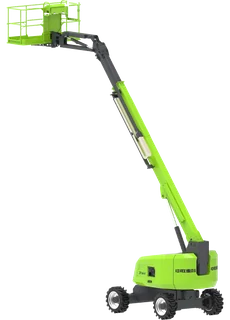

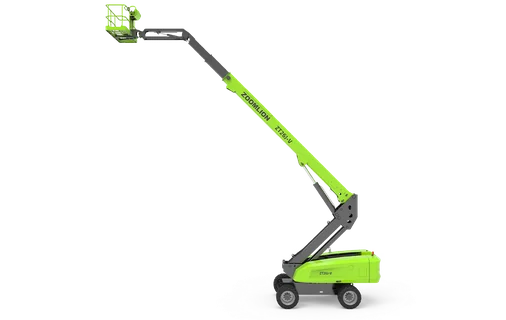

3 machines, from the ZT48J at 54 ft 6 in working height up to the ZT88J at 94 ft 1 in.
Platform capacity 660/1000 lb. Platform 8 ft by 3 ft. Stowed 31 ft 6 in long, 7 ft 6 in wide, 8 ft 3 in high. Drive speed 3.42 mph, gradeability 45% (24°). Weight 18,739 lb. ZOOMLION print “Comply with CE/ANSI/CSA Standard” on the sheet.
Spec Sheet (PDF) · 458 KBPlatform capacity 660/1000 lb. Platform 8 ft by 3 ft. Stowed 34 ft 5 in long, 8 ft wide, 9 ft high. Drive speed 3.73 mph, gradeability 45% (24°). Weight 27,557 lb. ZOOMLION print “Comply with ANSI/CSA Standard” on the sheet.
Spec Sheet (PDF) · 850 KB
Platform capacity 660/1000 lb. Platform 8 ft by 3 ft. Stowed 39 ft long, 8 ft 2 in wide, 9 ft 3 in high. Drive speed 3.42 mph, gradeability 45% (24°). Weight 38,360 lb. ZOOMLION print “Comply with ANSI/CSA Standard” on the sheet.
Spec Sheet (PDF) · 940 KBThe source
ZOOMLION Documents.
The manufacturer's own spec sheets, as published. Every figure on this page comes from these sheets or from ZOOMLION's North American catalogue.
PDF · 629 KB ZS1930AC/AC-Li Spec Sheet Highlights, standard features, accessories and the main specification table.
PDF · 680 KB ZS2632AC, ZS3246AC, ZS4045AC and ZS4555AC Spec Sheet Highlights, standard features, accessories and the main specification table.
PDF · 680 KB ZA45J Spec Sheet Highlights, standard features, accessories and the main specification table.
PDF · 933 KB ZA64J Spec Sheet Highlights, standard features, accessories and the main specification table.
PDF · 1.3 MB ZA45NJE Spec Sheet Highlights, standard features, accessories and the main specification table.
PDF · 638 KB ZT48J Spec Sheet Highlights, standard features, accessories and the main specification table.
PDF · 458 KB ZT76J Spec Sheet Highlights, standard features, accessories and the main specification table.
PDF · 850 KB ZT88J Spec Sheet Highlights, standard features, accessories and the main specification table.
PDF · 940 KB
Every figure on this page is published by ZOOMLION, either in their North American catalogue or in the spec sheets above. Configurations vary, and we confirm the specification against your job before quoting.
Before you spend the money
Straight Answers.
If yours is not here, call. You will speak to someone who knows the machines.
Do you supply ZOOMLION machines other than tower cranes?
Yes. Our Canadian distributorship is for the ZOOMLION tower crane range, and we supply the rest of the ZOOMLION line as well — aerial work platforms, mobile and crawler cranes, concrete equipment, earthmoving and forklifts. It is the same conversation and the same phone number.
Where do the figures on this page come from?
ZOOMLION. Every figure is taken from their North American catalogue or from their own spec sheets, and those sheets are on this page for you to download. Where two ZOOMLION documents give different figures for the same machine, we confirm it with them before quoting rather than choosing one.
Do these meet the North American standard?
ZOOMLION print “Comply with ANSI/CSA Standard” on the spec sheets for these machines. The sheets are on this page for you to read.
What is the difference between a scissor lift and a boom lift?
A scissor lift goes straight up. A boom lift also reaches out — ZOOMLION publish a horizontal outreach figure for every boom lift in the range, and an up-and-over height on the articulating models, which is the figure that matters when you have to clear an obstruction to get to the work.
Do you sell these, or rent them?
Both. New or used, lease or purchase. Tell us the job and we will tell you which makes more sense for you — sometimes that answer is to rent.
